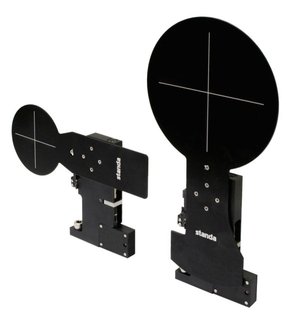

8MDS - Laser Beam Shutters
Laser Beam Shutters
Zoom in
Printable version
View drawings
Download 3D
Ultra thin (only 15 mm)

25 - 100 mm diameter shutters available



Laser Beam Shutters are designed in a very thin way thus enabling usage in extremely dense optical assemblies and narrow spaces. Our shutters are equipped with DC motors. Shutters are used to block laser beam and prevent equipment or eyes from taking damage due to unpredicted circumstances or laser malfunction. For instance, laboratory doors can be connected a series of shutters that will block the laser beam once doors are opened.





Specifications
Turning angle90°
Turning time1sec.
Cable1,6 m length
Motor connectorHDB15(M)
DC Motor sizeØ10mm
Gear4:1
Power12V, 0,176A
Limit switches2pc mechanical
Recommended
controllers

8SMC5-USB, 8DCMC1-USB
Ordering Information
Model
8MDS-120
8MDS-70
