| Specifications |
 |
| Resolution | |
|
|
|
|
| in full step | | 1.25 µm
|
|
|
|
| in 1/8 step | | 0.156 µm
|
|
|
|
| Optics diameter | | 25,4 mm
|
|
|
|
| Clear aperture | | 23 mm
|
|
|
|
| XY translation range | | ±2 mm
|
|
|
|
| Lead screw pitch | | 0.25 mm
|
|
|
|
| Installed actuators | | 2 x 8CMA20-8/15
|
|
|
|
| Cable | | 1,2 m length cable included
|
|
|
|
| Motor connector | | HDB15(M) (wiring diagram)
|
|
|
|
| Weight | | 0,8 kg
|
|
|
|
| Recommended controllers | | 8SMC5-USB
|
|
|
|
| Optocoupler end limit switches | | 2 per actuator
|
|
|
|
| Switch polarity | | pushed is open |
|
|
|
|
|
|
|
Product added to the Wishlist
| Ordering Information |
|
| Model |
|
|
|
|
|
|
|
|
|
|

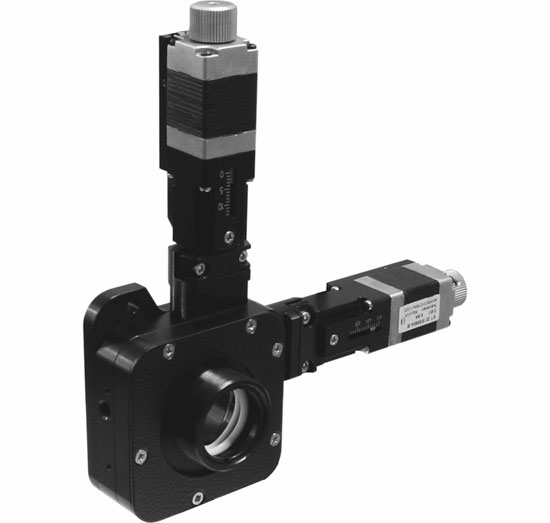

| 8MTOM2-1 |
|
|
|
|
|
|
|
|
|
|
|
