8MBM24 - Motorized Mirror Mounts
Motorized Mirror Mounts
Zoom in
Printable version
View drawings
Download 3D

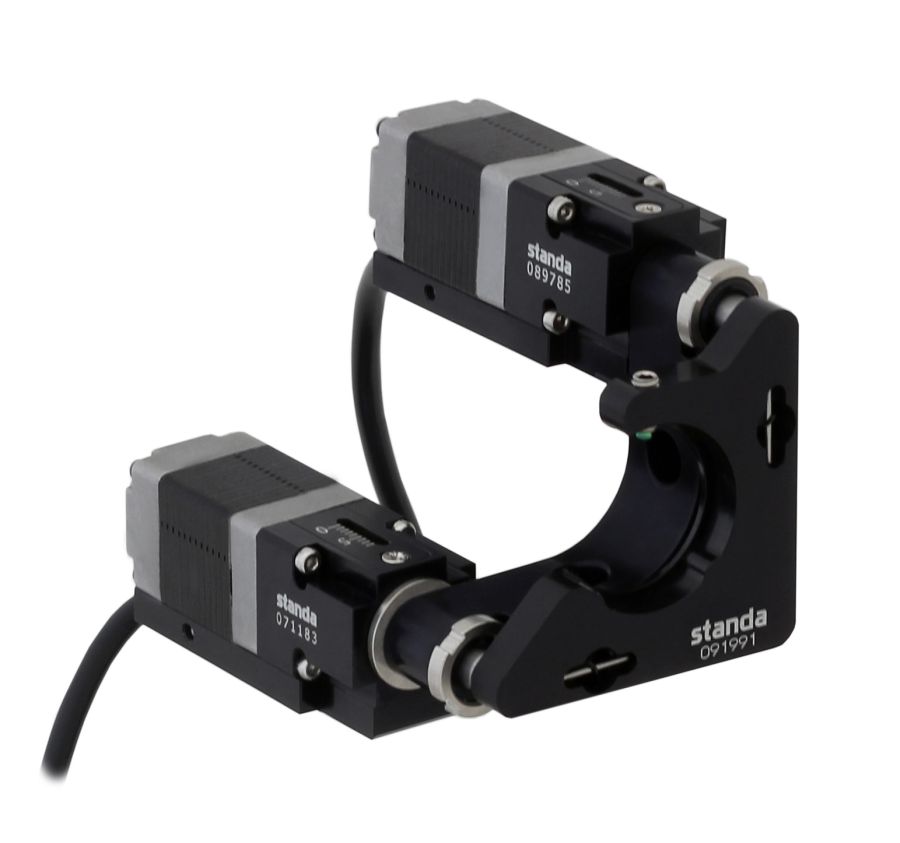

Motorized Mirror Mount
Clear Edge Design
1", 2", 3" optics mounts
Kinematic
Stable
Mounting on either of 2 sides
Black anodized aliminium
Vacuum version available
Manual version available



8MBM24-1-2

8MBM24 Motorized Mirror Mounts combine our traditional 5MBM24 Kinematic Mirror/Beamsplitter Mount with our designed Motorized Compact Actuator 8CMA20-8/15. Advantages. More precise positioning than with the manual adjusters. Ideal for use in closed systems. Integrated opto-electrical limit switches prevent damage, while providing homing - repeatability better than 10 arcsec.

Model 8MBM24-1-2 8MBM24-2-2 8MBM24-3-2
Optics diameter 25,4 mm 50,8 mm 76,2 mm
Clear aperture 23 mm 48 mm 74 mm
Resolution <1 arcsec <1 arcsec <1 arcsec
Tilt range (about two axes) ±4.5° ±2.8°
Speed (Standa 8SMC5 series controllers) from 1 arcsec/sec to 1°/sec
Installed actuators 2 x 8CMA20-8/15
Optocoupler end limit switches 2 per actuator, pushed is open
Cable 1,2 m length cable included
Motor connector HDB15(M) (wiring diagram)
Recommended controllers 8SMC5-USB






Ordering Information
Model Info
8MBM24-1-2 8MBM24-1-2 Mirror Mount for 1" optics with 2 Motorized Compact Actuators
8MBM24-2-2 8MBM24-2-2 Mirror Mount for 2" with 2 Motorized Compact Actuators
8MBM24-3-2 8MBM24-3-2 Mirror Mount for 3" with 2 Motorized Compact Actuators
