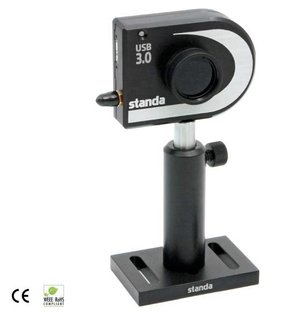

11Beamage-3 CMOS Beam Profiling Camera is the very first USB 3.0 camera dedicated to Laser Beam Profiling. This new CMOS-based camera comes with a completely redesigned software that features both a highly intuitive user interface and powerful data analysis tools.
The USB 3.0 Advantage
The USB 3.0 interface of the new 11Beamage-3 camera features a data transfer rate up to 10X faster than any USB 2.0 system. This incredible speed allows for much faster data transfer rates, up to 10 fps at 1 MPixels. USB 3.0 also features an improved communication architecture that reduces both data transmission latency and power consumption.
Perfect for Both Small and Large Beams
Thanks to its unique combination of high pixel density (2.2 MPixels) and large sensor size (11.3 x 6.0 mm), the 11Beamage-3 has the double advantage of accurately characterising both very small beams of only a few tens of microns to larger beams of several mm in width, thus effectively covering most of the applications in one device.
Simple but Effective
The completely redesigned software takes full advantage of today’s best development tools. The simple interface is highly intuitive and yet comprises many useful functions, like Background Subtraction, Animation Tool, Signal Normalization, Filtering and Averaging Functions, External Triggering, Active Area Definition, Gaussian Fit and more. Furthermore, the calculations done by the software are ISO 11146:2004, 11146:2005 and 13694-2000 compliant and give the user the most accurate beam characterization available, all this in a lightweight environment that doesn’t take days to fully master. |
 | Specifications
| Model |
11BEAMAGE-3 |
11BEAMAGE-3-IR |
11BEAMAGE-4M |
| SENSOR TECHNOLOGY |
CMOS |
CMOS (with Phosphor Coating) |
CMOS |
| EFFECTIVE APERTURE |
11.3 x 6.0 mm |
11.3 x 11.3 mm |
| MEASUREMENT CAPABILITY |
| Wavelength Range |
350 - 1150 nm |
1495 - 1595 nm |
350 - 1150 nm |
| Pixel Count |
2.2 MPixels |
4.2 MPixels |
| H x V |
2048 x 1088 |
2048 x 2048 |
| Pixel Dimension |
5.5 x 5.5 µm |
| Minimum Measurable Beam |
55 µm |
70 µm b |
55 µm |
| Shutter Type |
Global |
| Frame Rate |
8 fps @ 2.2 MPixels (Full Frame)
15 fps @ 1.1 MPixels (2048 x 544)
32 fps @ 0.066 MPixels (256 x 256) |
8 fps @ 2.2 MPixels (Full Frame)
15 fps @ 1.1 MPixels (2048 x 544)
32 fps @ 0.066 MPixels (256 x 256) |
6.2 fps @ 4.2 MPixels (Full Frame)
11.4 fps @ 2.2 MPixels (Full Frame)
18.6 fps @ 1.1 MPixels (2048 x 544)
32 fps @ 0.066 MPixels (256 x 256) |
| RMS Noise |
1000:1 (60 dB) |
| ADC Level (User Setable) |
12 bit (default) / 10 bit (option) |
| DAMAGE THRESHOLDS a |
| Maximum Average Power |
1 W |
| Saturation Level (1064 nm) |
CW: 10 W/cm2 ; Pulsed: 300 µJ/cm2 |
| SOFTWARE |
| Displays |
2D, 3D, XY and Beam Tracking |
| Display Features |
2D: Print Screen, Reset View, Show/Hide Beam Diameter
3D: Print Screen, Reset View, Top View
XY: Save Data, Zoom, Gaussian Fit, Semi-Log, Show/Hide Cursor, Show/Hide FWHM, Show/Hide 1/e2
Beam Tracking: Save Data, Print Screen, Reset View, Zoom |
| Beam Diameter Definitions |
D4σ (ISO compliant)
1/e2 along crosshairs (13.5%)
FWHM along crosshairs (50%)
86% effective diameter (D86) |
| Buffer Controls |
Open File, Save Current Data, Save All Data, Previous/Next Image, Clear Buffer, Animate |
| Printing and Reports |
Full Report in Print Ready Format (2D, 3D, XY, Measures, Parameters)
Print Screen in BMP format (2D and 3D) |
| PHYSICAL CHARACTERISTICS |
| Sensor Size |
11.3 x 6.0 mm |
11.3 x 11.3 mm |
| Sensor Area |
0.67 cm2 |
1.28 cm2 |
| Dimensions (not including filter) |
61H x 81.1W x 19.7D mm |
| Weight (head only) |
139 g | Specifications are subject to change without notice
a. With ND4 filter
b. With despeckle filter
|
