Measure Sources from 0.85 to 30 THz Broadband, room temperature operation, easier to use and less expensive than a Golay cell
Wide Dynamic Range from nW to mW With state of the art pyroelectric sensors, measure down to 100 nW
Integrated Analog Module Plug the head directly to your oscilloscope
Battery or AC Powered Includes 9V Battery and AC Power Eliminator
Calibrated Devices All THz detectors are calibrated in the 0.25 to 15 µm (20 THz) region.
MODELS

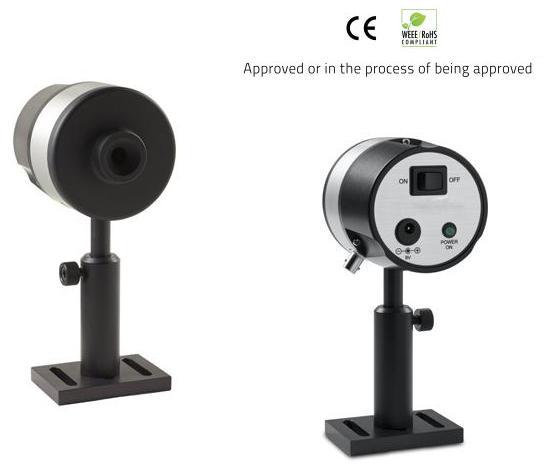

11THZ5I-BL-BNC
Max average power
140 µW
Effective aperture
5 mm Ø
Integrated module
Analog (BNC)
MEASUREMENT CAPABILITY
Spectral Rangea
Frequency
0.1 - 30 THz
Wavelength
3000 - 10 µm
Max Measurable Power
140 µW
Noise Equivalent Power
0.4 nW [4.0 x 10-9 W/(Hz)½]
Rise Time (0-100%)
≤ 0.2 s
Sensitivity (Typical)b
70 kV/W
Calibration Uncertainty
contact us
Damage threshold
50 mW/cm2
PHYSICAL CHARACTERISTICS
Effective Aperture
5 mm Ø
Sensor
Pyroelectric
Absorber
BL
Analog Output
0-10 V
Dimensions
81.3Ø X 99.3D mm
Weight
500 g
Specifications are subject to change without notice. Stand is not included.
Previously we had model 11THZ2I-BL-BNC with effective aperture 2x2, but
it was taken out of production and now 11THZ5I-BL-BNC is only available.
