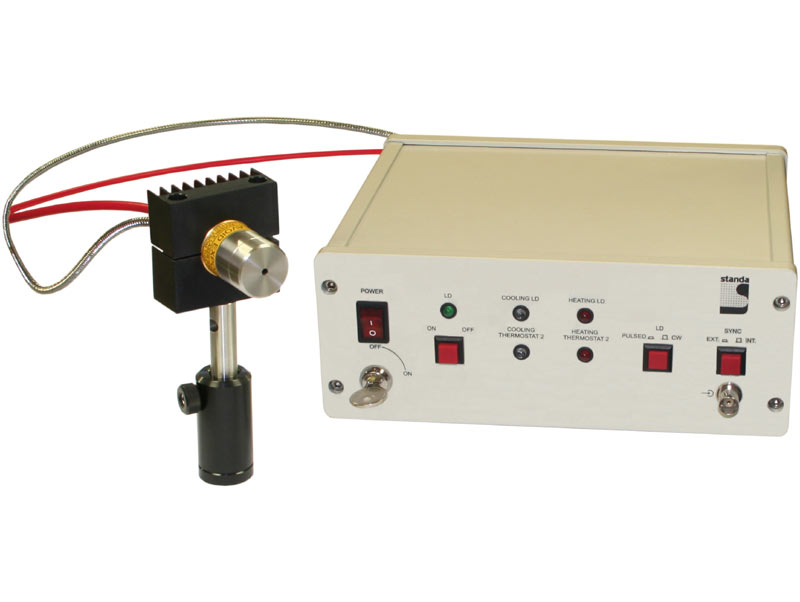

The STA-01CW Microchip Laser is a highly reliable CW diode-pumped solid-state laser operating at the fundamental 1064 nm and second harmonic 532 nm wavelength. The laser head delivers 0-500 mW of stable output power in a TEM00 beam. Laser resonators does not contain moving parts; optimized laser diode (LD) beam shaping optics allows easy and reliable assembling. Standard laser system consists of a power supply unit and a laser head. Power supply unit includes LD and TEC drivers, USB interface for ease of integration and remote control. JLV-SOFT9, universal laser control software with intuitive GIU, allows detailed setting and monitoring of the laser parameters. The STA-01CW is equiped with a Remote Interlock connector located at the back panel. Each unit is supplied with a shorting device installed in the interlock connector.
| Model |
STA-01CW |
STA-01SHCW |
| Wavelength, nm |
1064 |
532 |
| Linewidth, nm |
<0.5 |
| Output power, mW |
0-500 |
0-300 |
| Power stability, 8 hours +/-2 °C |
<5% |
| Warm up time, min |
<10 |
| Spatial mode |
TEM00 |
| M2 factor |
<1.2 |
| Polarization ratio |
>100:1 |
| External power supply voltage, V AC |
100-240 |
| Operating temperature, °C |
15-40 |
| Laser head dimensions: |
| Diameter, mm |
25 |
| Length, mm |
44 |
74 |
| Warranty |
12 months or 5000 hours whichever occurs first |
OEM Manufacturing services. Standa provides contract manufacturing services for application-specific Lasers. Please call your local Standa distributors or Standa office for more information.
|
