10MPIR1 - Universal Magnetic Drive Micropump with Inner Reservoir

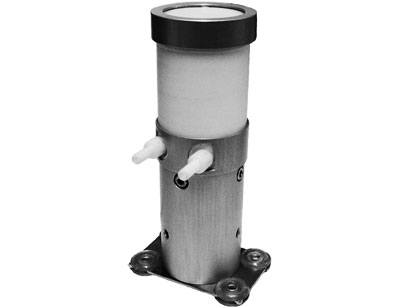

Universal Magnetic Drive Micropump with Inner Reservoir


		Zoom in

		Printable version

		View drawings


		Hermetical
		Inner Reservoir
		Chemical inertness
		Variable Speed Drive
		Magnetic Drive Pump
		Wetted parts: teflon, nylon, polyamide

Universal Magnetic Drive Micropump with Inner Reservoir 10MPIR1 is used in dye-lasers and picosecond lasers to pump the mode-locking dyes. Also it is used for cooling of the thermostat's micro-head. The size of the micropump reservoir could be changed according the customer's request.

Specifications

Input electricity



	Voltage, U	3-12 V



	Current, I	1 A



Sleeve inner diameter		Ø4 mm



Column height of fluid (water)		1 meter



Weight		0.18 kg

Ordering Information

Model

10MPIR1
