9S55 - Thin Micrometers
Thin Micrometers
Zoom in
Printable version
View drawings
Download 3D
Thin Micrometers
Mini Micrometers

Long Travel Micrometers

High-Resolution Micrometers

Stainless steel or aluminium handle

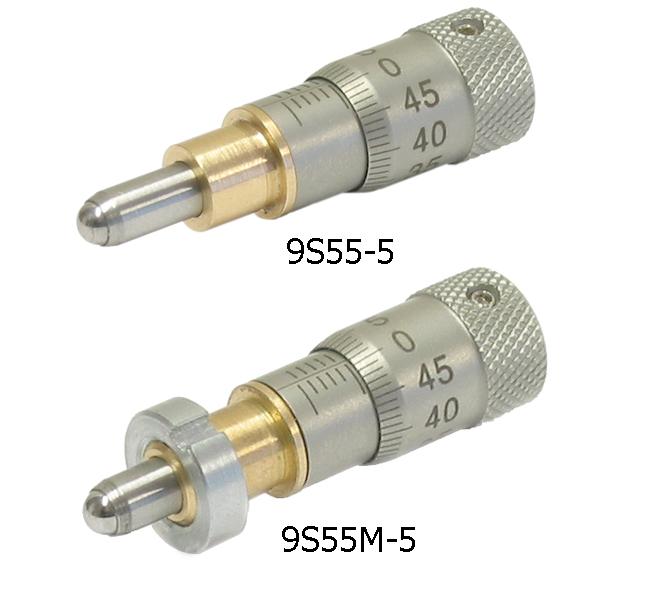

Thin Micrometers 9S55 are adjustment screws of very high precision. You mount the micrometer on a Ø8 hole. You clutch 9S55 with your own fixing screw. 9S55M has an extra thread and a fixing nut. You tighten the nut from the opposite side.

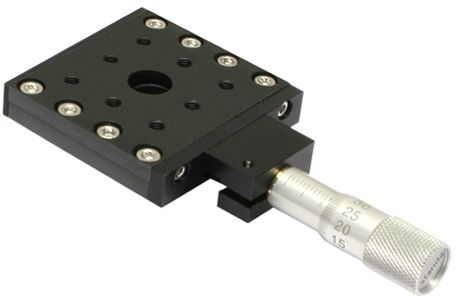

Ultra Low Profile Steel Translation Stage 7T164-10 with 9S55M-10 installed.

Micrometers with aluminium handle have -AL at the end of the code. Example: 9S55M-10-AL



Specifications
Pitch0.5mm
Scale Graduation10µm
Micrometers Sensitivity1µm
Ordering Information
Model Nominal
travel,
mm
Max.
Length,
mm
Weight,
kg

9S55-10 10 58.5 0.03
9S55-10-AL 10 58.5 0.03
9S55-5 5 46 0.02
9S55-5-AL 5 46 0.02
9S55M-10 10 58.5 0.03
9S55M-10-AL 10 58.5 0.03
9S55M-5 5 46 0.02
9S55M-5-AL 5 46 0.02
