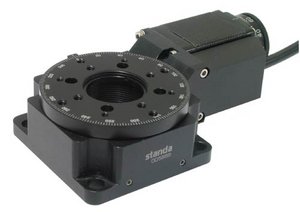

8MR150 - Motorized Rotation Stages
|
|
|
 |
| How to control motorized
stages? |
Support all
parameters of motion, have
serious
programming
base, single to multi axis, ports:
| | | | |
| |
| Specifications |
|
| Rotation
range |
|
360° |
|
|
|
| Resoliution |
|
0,6 arcmin |
|
|
|
| Wobble |
|
0,6 arcmin |
|
|
|
| Rotation
speed |
|
50°/s (36V) |
|
|
|
| Load capacity: |
|
|
|
|
Horizontal |
|
6,0 kg |
|
|
|
|
Radial |
|
1,7 kg |
|
|
|
|
Torque |
|
0,5 N/m |
|
|
|
| Motor cable |
|
integrated |
|
|
|
|
Length |
|
2 meters |
|
|
|
|
Connector |
|
DB9 plug (9 pin Sub-D) |
|
|
|
| Weight |
|
0,6 kg |
|
|
| |
|
|
|
| Models |
|
| Model |
|
Aperture |
|
Price |
|
|
|
|
| 8MR150-1 |
|
1 Inch* |
|
|
|
|
|
|
| 8MR150-30 |
|
30 mm |
|
|
|
|
|
| |
| |
|
