| Specifications |
 |
| Fine screw thread | | M6x0.25
|
|
|
|
| Optics diameter | | Ø25.4mm
|
|
|
|
| XY translation range | | ±2 mm
|
|
|
|
| screw thread pitch 250 µm (100TPI) | |
|
|
|
|
| Sensitivity for XY translation | | 1µm
|
|
|
|
| Sensitivity for Z translation | | 1µm
|
|
|
|
| Z translation range | | 10mm
|
|
|
|
| Material | | black anodized aluminium
|
|
|
|
| Weight | | 0.4 kg |
|
|
|
|
|
|
|
Product added to the Wishlist
| Ordering Information |
|
| Model |
|
Description |
|
Price |
|
Availability |
|
|
|
|
|
|
|
|

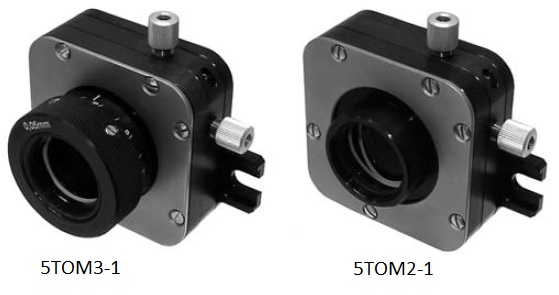

| 5TOM2-1 |
|
Two Axis Translation Optical Mount:
- XY translation range |
|
€ 227.00 |
|
today |
|
|
|
|
|
|
|
| 5TOM3-1 |
|
Three Axis Translation Optical Mount:
- XY translation range; - Z translation range |
|
€ 235.00 |
|
today |
|
|
|
|
|
|
|
|
|
