8MR174-11-28, 7T184-13
(2 pieces) and 7VT174-5 stacked. |
3UBP universal base plates for stacking the translation stages to STANDA optical tables or to another stages.

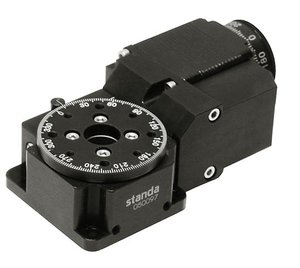

8MR174-11-20 |
|
8MR174V-11-VSS42
Motor VSS42
All characteristics like non-vacuum model.
Compatible with 10-6 Torr vacuum.
|
Specifications
| Model |
8MR174(E)-11-28 |
8MR174(E)-11-28S |
8MR174(E)-11-20 |
8MR174(E)V-11-VSS42 |
| Rotation Range |
360° |
| Resolution in full step* |
0.9 arcmin (0.015°) |
| Uni-directional Repeatability |
0.4 arcmin |
| Bi-directional Repeatability |
1.6 arcmin |
| Max. rotation speed* |
75°/s (36V) 30°/s (12V) |
50°/s (36V) 20°/s (12V) |
| Wobble |
1 arcmin |
| Eccentricity |
10 µm |
| Load capacity |
| Horizontal |
4 kg |
4 kg |
3 kg |
4 kg |
| Radial |
1.5 kg |
| Torque |
0.5 Nm |
0.35 Nm |
0.15 Nm |
0.5 Nm |
| Integrated cable |
1.6 m length |
vacuum compatible cable 1.6 m length |
| Motor connector |
HDB15(M) |
| Stepper motor |
#28: bipolar, 200 (1.8°) steps, 6.8 Om, 0.67A |
#28S: bipolar, 200 (1.8°) steps, 5.6 Om, 0.67A |
#20: bipolar, 200 (1.8°) steps, 5.4 Om, 0.6A |
#VSS42: bipolar, 200 (1.8°) steps, 1.7 Om, 1.2A |
| Weight |
0.4 kg |
0.35 kg |
0.3 kg |
0.45 kg |
Overall Dimensions,
L x W x H |
115x52x29 mm
(small) |
102x52x29 mm
(mini) |
94.5x48x26 mm
(miniature) |
116x59x42 mm
(vacuum compatible) |
| Recommended controllers |
8SMC5-USB series |
| Mechanical home reference switch |
1, pushed is "closed" |
*Test condition: STANDA controllers; Power supply – 36V
|
