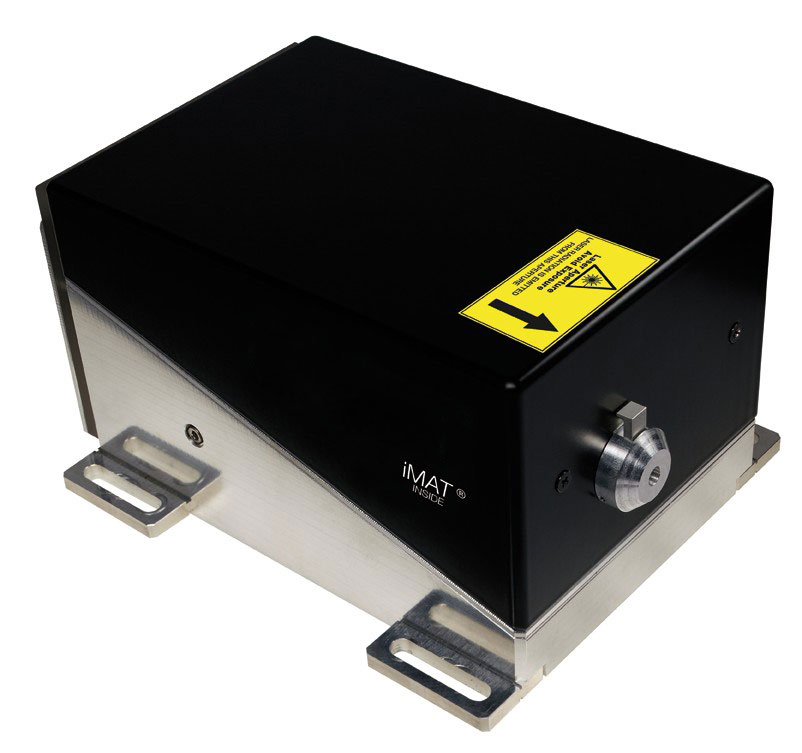

Scherzo series offers pitch perfect locked single frequency laser light with outputs ranging from 50 mW up to 300 mW. The unique laser platform allows one to reach the much higher SHG conversion efficiency if compared to the standard architectures. Thanks to the unique technology the fundamental and the second harmonic cavities are also tuned to maximize 1064nm light generation, therefore much smaller and less expensive pump diodes can be used.
Symphony lasers are capable of outputting up to 1W of 532 nm laser light in a small compact package without water-cooling. This platform is scalable to even higher powers whilst maintaining the same performance parameters.
Key applications:
Typical applications for Scherzo 532 lasers include: PIV, Flow Cytometry, Holography and Vibrometry. Symphony 532 - large scale interferometry, holography and Ti:Sapphire laser Pumping.
| Model |
Scherzo-532-50 / -100 / -150 / -200 / -300 / -400 |
Symphony-532-0.5W / -1W / -1.5W |
| Output wavelength |
532 nm |
| Rated output power (CW) |
50, 100, 150, 200, 300, 400 mW |
500, 1000, 1500 mW |
| Output beam diameter |
0.5 mm (+/-0.2) @ 10 mm 1/e2 |
| Transverse mode structure |
TEM00, M2 <1.05 |
| Longitudinal mode structure |
SLM (Single frequency), <1MHz line width |
| Divergence |
<1mrad 1/2 angle |
| Beam pointing stability |
≤ 10 µrad/°C |
| Polarization |
Vertical |
| Polarizarion ratio |
≥ 100:1 |
| Output power noise (p-p) |
≤ 2% (10 Hz - 10 MHz) |
| Output power noise (rms) |
≤ 0.3% (10 Hz - 10 MHz) |
| Output power stability |
≤ 2% (4 hours) |
| Thermal management |
TEC conductively cooled. Recommend mounting on metal heat sink plate |
| Operating temperatures |
15-35 °C |
| Laser head Dimensions (LxWxH) |
170 x 139 x 96 mm |
186 x 139 x 96 mm |
| Controller Dimensions (LxWxH) |
175 x 104 x 45 mm |
225 x 246 x 110 mm |
| Power adapter |
Standard AC/DC converter, 12 VDC,
140 W max with Mini-DIN 4 power connector |
EN60 320-1 Standard Sheet
C14 Class I Cold Condition (Fused)
Voltage: 80 - 264 VAC, 47 - 400 Hz |
OEM Manufacturing services. Standa provides contract manufacturing services for application - specific Lasers. Please call your local Standa distributors or Standa office for more information.
|
