9SH67 - Industrial Adjustments Screws
Industrial Adjustments Screws
Zoom in
Printable version
View drawings

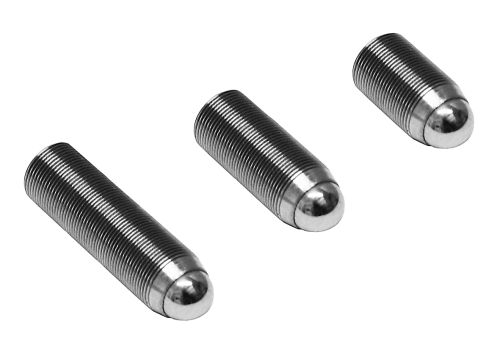

Industrial Adjustment Screws 9SH67. When you need to make accurate adjustment in your equipment, order 9SH67 industrial adjustment screws along with 9MT6-0.35 taps to make matched screw and nut pairs and enjoy the ultimate performance. 9SH67 industrial adjustment screws do not include nuts. Nuts with perfect thread and minimal backlash for the screws can be made with our 9MT6-0.35 taps that use the widely appreciated Standa adjustment screw technology.

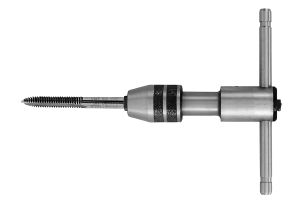

Taps and Tap Wrench ordered separately

Specifications
Adjustment screw thread M6x0.35
Sensitivity 1 μm
Axial load capacity 70 N
Ordering Information
Model Threaded part length, mm
9SH67-10 8
9SH67-18 16
9SH67-23 21
9SH67-XX custom size (XX - 2)
9SH67.01-7.3 5.5
